69 Deluxe Sedan
Author Message
User avatar

Joined: Sat Apr 28, 2012 10:16 am
Posts: 40
Location: Largs Bay SA
Car(s): 1969 Isuzu Bellett Sedan, 1995 Toyota Hilux SR5, 2014 Land Rover Discovery XXV
Reply with quote

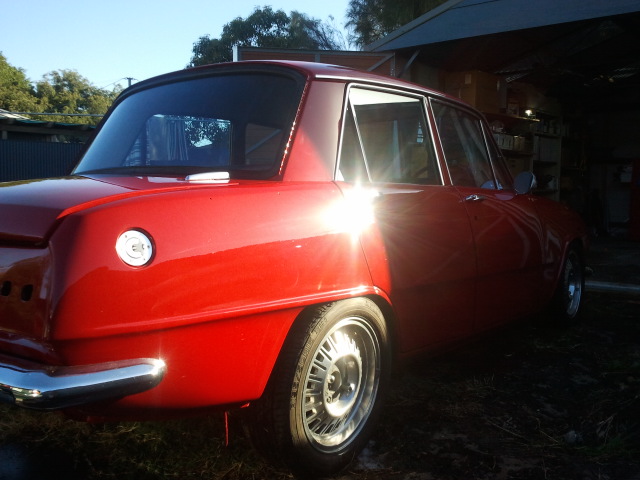

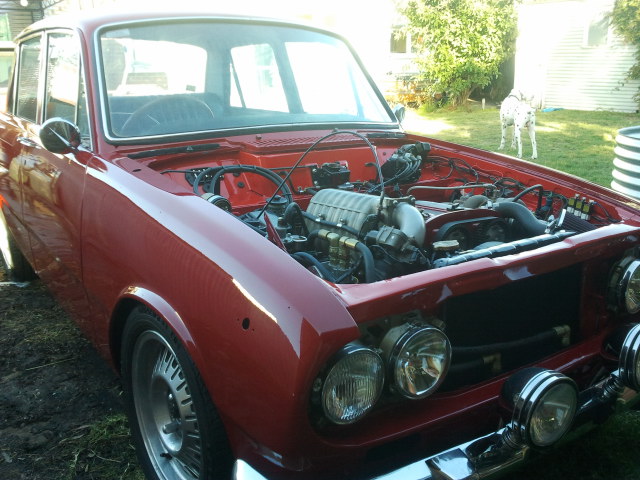

Here's my pride an joy, its been about 20yrs of on and off work on the car, mostly its in the garage but i get it out every now and then to give it a tubs and think about the good old days when life was a bit simpler.

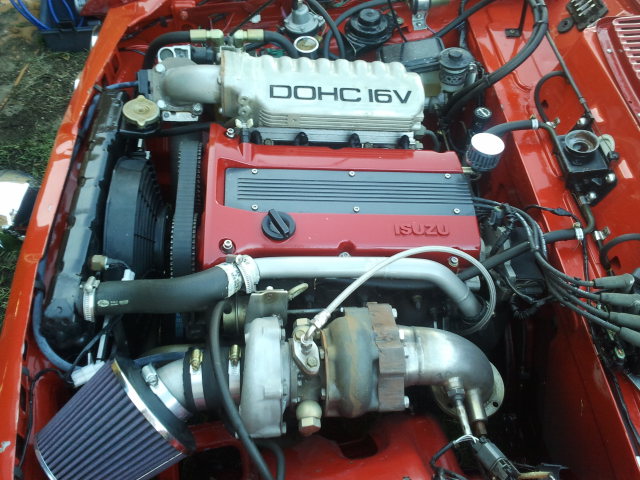

Engine - 4XE1-WT
Gearbox - Nissan FJ20 Turbo
Wheels - Sigma Turbo
Brakes - Mazda RX7 - Series 4 (4 Spot)
- 11" Ford Discs
Guages - Classic VDO
Steering Wheel - Nardi
Seats - Cobra Classic

Cheers


Chris


Attachments:
2011-04-03 16.29.57.jpg
2011-04-03 16.29.57.jpg [ 96.62 KiB | Viewed 13008 times ]
2011-04-03 16.30.23.jpg
2011-04-03 16.30.23.jpg [ 97.49 KiB | Viewed 13008 times ]
2011-04-03 16.31.09.jpg
2011-04-03 16.31.09.jpg [ 101.27 KiB | Viewed 13008 times ]
2011-04-03 16.33.11.jpg
2011-04-03 16.33.11.jpg [ 98.28 KiB | Viewed 13008 times ]
Sun Apr 29, 2012 1:38 am
Profile

Joined: Mon Jan 05, 2009 10:39 am
Posts: 1132
Location: Adelaide Hills
Car(s): GU Patrol, Subaru Outback, 1969 florian deluxe & 1976 Luv
Reply with quote
oh thats very nice, bet it goes well too!

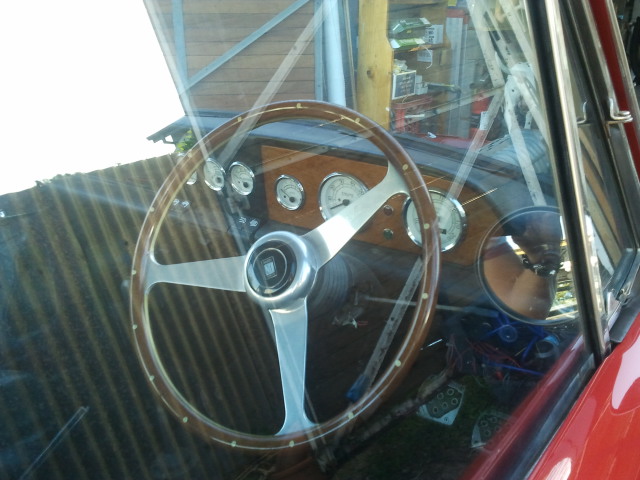

I like the dash treatment and the steering wheel looks good too, Is the paint the origional colour?
be good to see some more pics of the beast or even see it out and about sometime!

_________________
I am "that" Florian guy.
never buy a car you cant push.


Sun Apr 29, 2012 2:10 am
Profile

Joined: Fri Mar 20, 2009 8:23 am
Posts: 1816
Reply with quote
well done there Chris, I have often thought of this set up rwd gearbox and dizzy a issue was my thoughts? theres only a week or so left in that ;)


Sun Apr 29, 2012 2:31 am
Profile
User avatar

Joined: Sat Apr 28, 2012 10:16 am
Posts: 40
Location: Largs Bay SA
Car(s): 1969 Isuzu Bellett Sedan, 1995 Toyota Hilux SR5, 2014 Land Rover Discovery XXV
Reply with quote
Every little step there was a modification to be done.. from the Throttle Body swap to the Waste Spark ignition, it only just fit in, no intercooler though I have routed the pipes down so i could mount one in front of the car at some point but i think it would ruin the look.


Sun Apr 29, 2012 2:52 am
Profile

Joined: Fri Mar 20, 2009 8:23 am
Posts: 1816
Reply with quote
what about a small radiator in front of the original and air to water :?: inter cooler :?:
It took me 20 years to complete my 1st but the good day's are ahead when you get to crooze,life interfered with rebuild too. Took my second gt rebuild for a drive today :shock: .


Sun Apr 29, 2012 3:36 am
Profile
User avatar

Joined: Sat Apr 28, 2012 10:16 am
Posts: 40
Location: Largs Bay SA
Car(s): 1969 Isuzu Bellett Sedan, 1995 Toyota Hilux SR5, 2014 Land Rover Discovery XXV
Reply with quote
I have an oil cooler mounted in front of the radiator where the three air holes are, it would still be a bit messy with the pipe work for an intercooler. Amzing how time flys one miniute your going to the Nationals the next Married with a couple of mortgages.. I googled Bellet and came up with this site.. very cool, I remember sending a picture to a bloke in the Netherlands when i frist started putting the engine in.. but i think its gone now. a mate got me enthused again when he bought an RX2 a few weeks back in bits, i read that someone thought the car was photoshop myth so i joined up.. its great to see there is so much intrest in the cars out there.


Sun Apr 29, 2012 3:47 am
Profile

Joined: Mon Jan 05, 2009 10:39 am
Posts: 1132
Location: Adelaide Hills
Car(s): GU Patrol, Subaru Outback, 1969 florian deluxe & 1976 Luv
Reply with quote
there are quite a few bellett owners here in Adelaide, and everyone seems appreciative to see them on the roads wether they are restored, modified or just plain ratty. Is there alot left to do on yours before its on the road?

_________________
I am "that" Florian guy.
never buy a car you cant push.


Sun Apr 29, 2012 5:08 am
Profile
User avatar

Joined: Sat Apr 28, 2012 10:16 am
Posts: 40
Location: Largs Bay SA
Car(s): 1969 Isuzu Bellett Sedan, 1995 Toyota Hilux SR5, 2014 Land Rover Discovery XXV
Reply with quote
I need to finish the exhaust system, interior and re-do the bonet. but thats about all, fun to drive.. I have run it up and down the street a few times stright out exhaust at the moment so you here the turbo spool up and then when you hit the blowoff valve.. it does spin the wheels nicley, i put a ceramic paddle cluth from a GTR skyline in it.. so that holds up all ok, its just got a standard diff so i dont really tromp-it to much. other than those few things its all there rearing to go.. just need the $$$ to finish it off, you learn as you get older that there is so much more than cars.. House and a wife.. well lets just leave it there.


Sun Apr 29, 2012 5:23 am
Profile
User avatar

Joined: Tue May 10, 2011 2:23 am
Posts: 2576
Location: Melb.
Car(s): '72 Sport Bellett (imported 180912), had Belletts in past, 2 sed, 3 GT's. M/B A250 Sport, i30
Reply with quote
[quote="Chris"] House and a wife.. well lets just leave it there.[/quote]


you could leave it over here if you like !

the car that is..

glenn

_________________
'72 PR60 Sport


Sun Apr 29, 2012 9:36 am
Profile WWW
User avatar

Joined: Tue May 10, 2011 2:23 am
Posts: 2576
Location: Melb.
Car(s): '72 Sport Bellett (imported 180912), had Belletts in past, 2 sed, 3 GT's. M/B A250 Sport, i30
Reply with quote
Interested in more details on the brakes.... Ford rotors from what car?

how mounted ? slipped over the Bellett hub and wheel studs ?

brake pictures would be nice to see one day
when you remove a wheel

glenn

_________________
'72 PR60 Sport


Sun Apr 29, 2012 9:37 am
Profile WWW
User avatar

Joined: Fri Sep 26, 2008 6:16 am
Posts: 1155
Location: Adelaide north near the hills.
Car(s): Roman Red 1965 Sedan, Mint 67 Sedan Auto, 1967 GT , 1.5x 1967 sedans, 1968 Deluxe Sedan, 1965 Wasp Ute (Resto project)
Reply with quote
very nice build there Chris.

and welcome to the forum.
you appear to be getting on real well with your build.
here is a link to another ex SA car quite modified as well
viewtopic.php?f=8&t=1766

we here in SA do a day run about every 4 months. usually meet somewhere central about 1030am and cruise for an hour or so before stopping for lunch and then another hour or so drive before splitting up and heading our seperate ways home.
you are most welcome to join our next cruise. dont need a running Bellett to come along. May be able to con a passenger ride in a car for the day as well. plenty of photos of your build and the more details the better for us guys as we love to follow the experience of our fellow Bellett r's.

and your right about the time and money issue. i have to cull my collection down to 4 and thats not much fun. but most of my work is stock standard rebuild and repair so cost is minimum.

cheers

OZ

_________________
So many toys and so little time to play!!


Sun Apr 29, 2012 10:35 am
Profile

Joined: Fri Mar 20, 2009 8:23 am
Posts: 1816
Reply with quote
I had to cull about 10 years ago ;) and she is still not happy but no longer my problem :lol:.i am ;)


Sun Apr 29, 2012 10:46 am
Profile
User avatar

Joined: Sat Apr 28, 2012 10:16 am
Posts: 40
Location: Largs Bay SA
Car(s): 1969 Isuzu Bellett Sedan, 1995 Toyota Hilux SR5, 2014 Land Rover Discovery XXV
Reply with quote
Thanks,

Love to see all the Bellets out in action, ill keep an eye out on the SA events section, I am rebuiding a "74 Chesney Kampa GT" poptop camper at the moment so thats taking priority for my attention but i hope to be able to the bellett finished off next year sometime? maybe bring it to the all japan day you guys run, but well see about it.

Cheers

Chris


Sun Apr 29, 2012 8:50 pm
Profile
User avatar

Joined: Sat Apr 28, 2012 10:16 am
Posts: 40
Location: Largs Bay SA
Car(s): 1969 Isuzu Bellett Sedan, 1995 Toyota Hilux SR5, 2014 Land Rover Discovery XXV
Reply with quote
Hi Glenn and OZ,

The Brakes are XF Falcon 11" vented Discs and Mazda RX7 Series 4 (4 Spot) Calipers. all mounted on the standard hub, custom mounting for the calipers and the caliper had to be modified slightly to fit the HUB section of the disc they fill up the 15" wheels.
The Master Cylinder is a Mitsubishi Dual Stage with no booster so the brake leaver is modified to give me the same brake / pedal ratio as a booster, this is also mounted on a custom machined mount and adjustable push rod.
anything you see here isnt standard, The engine even has adjustable cam timing wheels.

I used the XF Discs as they gave me the right offset but i could pickup a set from the wreckers and have them machined down to suit the RX7 calipers

I was very lucky to know a very good machisist during the build, the work he did was first class.

I'll take a pic of it and post it.

Specs for the discs as you see the min thickness for the XF Disc is just right for the RX7 and being so big they have heeps of metal on them.

XF Discs
Vent-Vented
Diameter-287
Height-75
Thickness-24
Min Thickness-22.2
Centre Hole Dia-HUB TYPE
No of Bolt Holes-5

RX7 Series 4 Discs
Vent-Vented
Diameter-276
Height-65
Thickness-22
Min Thickness-20
Centre Hole Dia-77
Bolt Holes-5


Sun Apr 29, 2012 8:51 pm
Profile

Joined: Wed Feb 24, 2010 9:37 pm
Posts: 692
Car(s): 2 GT Belletts bellett sedan . Florian.gt project.fj Holden. Gemini.lc gtr.datsun240 z
Reply with quote
Bring it to merimbula nationals. Please . Gricey


Sun Apr 29, 2012 10:23 pm
Profile

Joined: Tue Mar 24, 2009 11:52 am
Posts: 838
Location: Sunshine Coast QLD
Car(s): PR95 PR20 WASP SWB NH Pajero Superchrged NT Pajero BF SR6 Falcon
Reply with quote
Shoud be finnished for the following Nationals wich will be held in ADELAIDE, what a draw card :shock:


Sun Apr 29, 2012 10:30 pm
Profile
User avatar

Joined: Tue May 10, 2011 2:23 am
Posts: 2576
Location: Melb.
Car(s): '72 Sport Bellett (imported 180912), had Belletts in past, 2 sed, 3 GT's. M/B A250 Sport, i30
Reply with quote
Thanks for the info. LOve to see the mods to the pedal mods also when you take pics of the brakes.

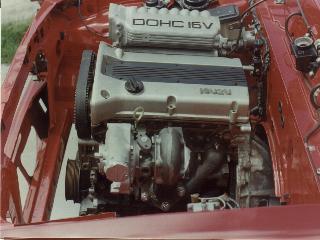

Here's a picture you sent me years ago.........

glenn


Attachments:
4xe1%20from%20left-small[1].jpg [ 17.23 KiB | Viewed 12917 times ]

_________________
'72 PR60 Sport
Sun Apr 29, 2012 11:50 pm
Profile WWW
User avatar

Joined: Sun Oct 26, 2008 9:31 am
Posts: 234
Location: Melbourne, Australia
Car(s): 65 and 66 sedan
Reply with quote
That looks fantastic. Did you get the motor out of the U.S?

_________________


Mon Apr 30, 2012 12:27 am
Profile
User avatar

Joined: Sat Apr 28, 2012 10:16 am
Posts: 40
Location: Largs Bay SA
Car(s): 1969 Isuzu Bellett Sedan, 1995 Toyota Hilux SR5, 2014 Land Rover Discovery XXV
Reply with quote
Hi,
What Nationals will be here in Adelaide?
Is there a date set yet?
Location?

The all Japan Day looks good, I think it was at Glenelg.

The Motor is out of a JT AWD Gemini, its the same as the Lotus Elan S2, Isuzu Built it to for the Elan but ended up putting it into the AWD Gemini, I had one of those for a few years but sold when i bought the Hilux, best thing ive ever bought.

I need to pickup a new battery to get it out of the garage, that's in the boot now, running a Commodore VT Battery, a couple of fuel pumps and a small surge tank.

"Merimbula Nationals" sorry wont be able to make that.. but sounds cool.

Ill Take a couple of pictures of some of the more interesting things on the car and post them.


Cheers


Chris


Mon Apr 30, 2012 10:21 am
Profile

Joined: Fri Mar 20, 2009 8:23 am
Posts: 1816
Reply with quote
Chris i ran a in line vl commodore high pressure pump without a serge tank and never had a fuel issue it was fitted at the tank and had no problems.The bellett tank will gravity feed it. It would be plenty for this engine as the same pump i run on a v6 supercharged pajero that ran out of hp on the dyno due to mitsubishi pump was maxed out.


Mon Apr 30, 2012 10:35 am
