Parcel Trays under the Glovebox
Author Message
User avatar

Joined: Mon Nov 15, 2010 3:11 am
Posts: 245
Location: Adelaide
Car(s): 1967 GT Bellett
Reply with quote
Just wondering how many Australian delivered cars had this accessory
Cheers
Flying


Tue Mar 16, 2021 8:45 am
Profile

Joined: Sun Dec 12, 2010 10:04 am
Posts: 363
Location: Boyne Island.Gladstone. Queenland
Car(s): '70 PR91,'69 PR20 x 2,'66 PR20,'65? KR20's x 2,'66 ? PR90,2012 d22 STR Navarra.
Reply with quote
Hi Flying.
All Deluxe sedans from '66.5 up to '68?. Why I have a ? after the year is because I don't have information from
'67 to '71. It was interesting to read that the PR20 '71/'72 years did not list it as a part for that model. Including the PR50 Special.
All PR91 GT's. from start of production.
My '69 PR20 never had one. Even though it had a few Deluxe parts fitted and isn't a Deluxe. I bought a shelf from
a wrecking yard off of a Rodeo and using the shelf out of my convertible as a pattern and I modified it to suit.
Maybe someone with a bit more information may be able to fill the gap between '67 and '71.

Dave.

_________________
CQGT.
I'm the Dave with the convertible.


Tue Mar 16, 2021 11:21 am
Profile
User avatar

Joined: Mon Nov 15, 2010 3:11 am
Posts: 245
Location: Adelaide
Car(s): 1967 GT Bellett
Reply with quote
Thanks

The reason I ask is that mine has not one fitted I bought mine in 1978 only the 3rd Owner it was as far as I know very original
Do you have any pictures of how they attach?

Regards Flying


Tue Mar 16, 2021 11:15 pm
Profile
User avatar

Joined: Tue May 10, 2011 2:23 am
Posts: 2733
Location: Melb.
Car(s): '72 Sport Bellett (imported 180912), M/B AMG A35, i30, had Belletts in past, 2 sed, 3 GT's.
Reply with quote
My 72 sport has one. Obviously not Aust delivered though but i thought at least all GT's had them standard.

Mounts: as far as i recall all Belletts have a tapped hole on the A pillar....... one bracket goes in there (pics)
On the right, a curved bracket runs up under the lower dash area.

At the back there are L shaped brackets underneath that screw into the firewall. Possibly those holes are in all cars too, not sure.


Attachments:
parcel shelf_3.JPG
parcel shelf_3.JPG [ 44.47 KiB | Viewed 405 times ]
parcel shelf_2.JPG
parcel shelf_2.JPG [ 32.48 KiB | Viewed 405 times ]
parcel shelf_1.JPG
parcel shelf_1.JPG [ 55.53 KiB | Viewed 405 times ]

_________________
'72 PR60 Sport
Wed Mar 17, 2021 1:07 am
Profile WWW

Joined: Tue Sep 16, 2008 11:54 am
Posts: 2531
Reply with quote
Every PR91 GT that was Aust delivered had one. Guaranteed.
Never seen one in a sedan, even a Deluxe. Doesn't mean pre 69 cars didn't have them tho. I've just never looked
Can also guarantee that 69 Deluxes did not have them tho.


Wed Mar 17, 2021 12:17 pm
Profile

Joined: Sun Dec 12, 2010 10:04 am
Posts: 363
Location: Boyne Island.Gladstone. Queenland
Car(s): '70 PR91,'69 PR20 x 2,'66 PR20,'65? KR20's x 2,'66 ? PR90,2012 d22 STR Navarra.
Reply with quote
Hi Flying.
I've attached a few pics of the Parcel trays out of my GT's.
Hoping those who are not aware of what We are discussing will now know.
Even that I had a sample to copy from I reckon would still be easy to make.

Dave.


Attachments:

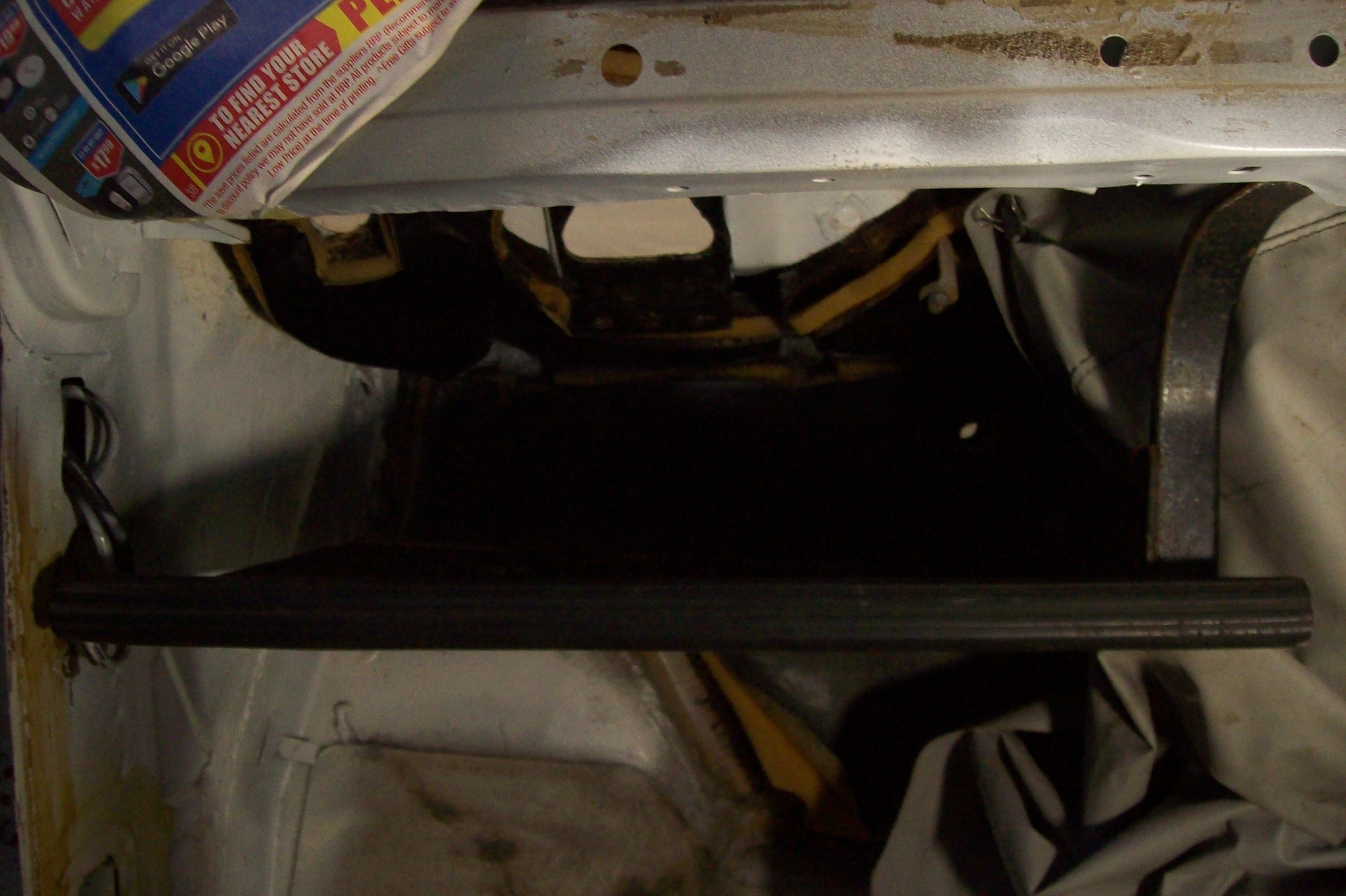

File comment: Under dash location 2.
105_0076.JPG [ 862.61 KiB | Viewed 357 times ]
File comment: Under das location.
105_0075.JPG [ 808.33 KiB | Viewed 357 times ]
File comment: Single tray.
105_0073.JPG [ 1.16 MiB | Viewed 357 times ]
File comment: Both Trays.
105_0070.JPG [ 1.15 MiB | Viewed 357 times ]

_________________
CQGT.
I'm the Dave with the convertible.
Sun Mar 21, 2021 8:38 am
Profile
User avatar

Joined: Mon Nov 15, 2010 3:11 am
Posts: 245
Location: Adelaide
Car(s): 1967 GT Bellett
Reply with quote
Thanks for that

As PR91 mentioned all PR91's had them
I am wondering if mine was on the cusp and had some PR90 stuff

My Heater was a cable similar to the Choke but labelled Heat and only 1 slide for vent/ recirculation

Cheers Flying


Mon Mar 22, 2021 12:57 am
Profile

Joined: Sun Dec 12, 2010 10:04 am
Posts: 363
Location: Boyne Island.Gladstone. Queenland
Car(s): '70 PR91,'69 PR20 x 2,'66 PR20,'65? KR20's x 2,'66 ? PR90,2012 d22 STR Navarra.
Reply with quote
Hi Flying.

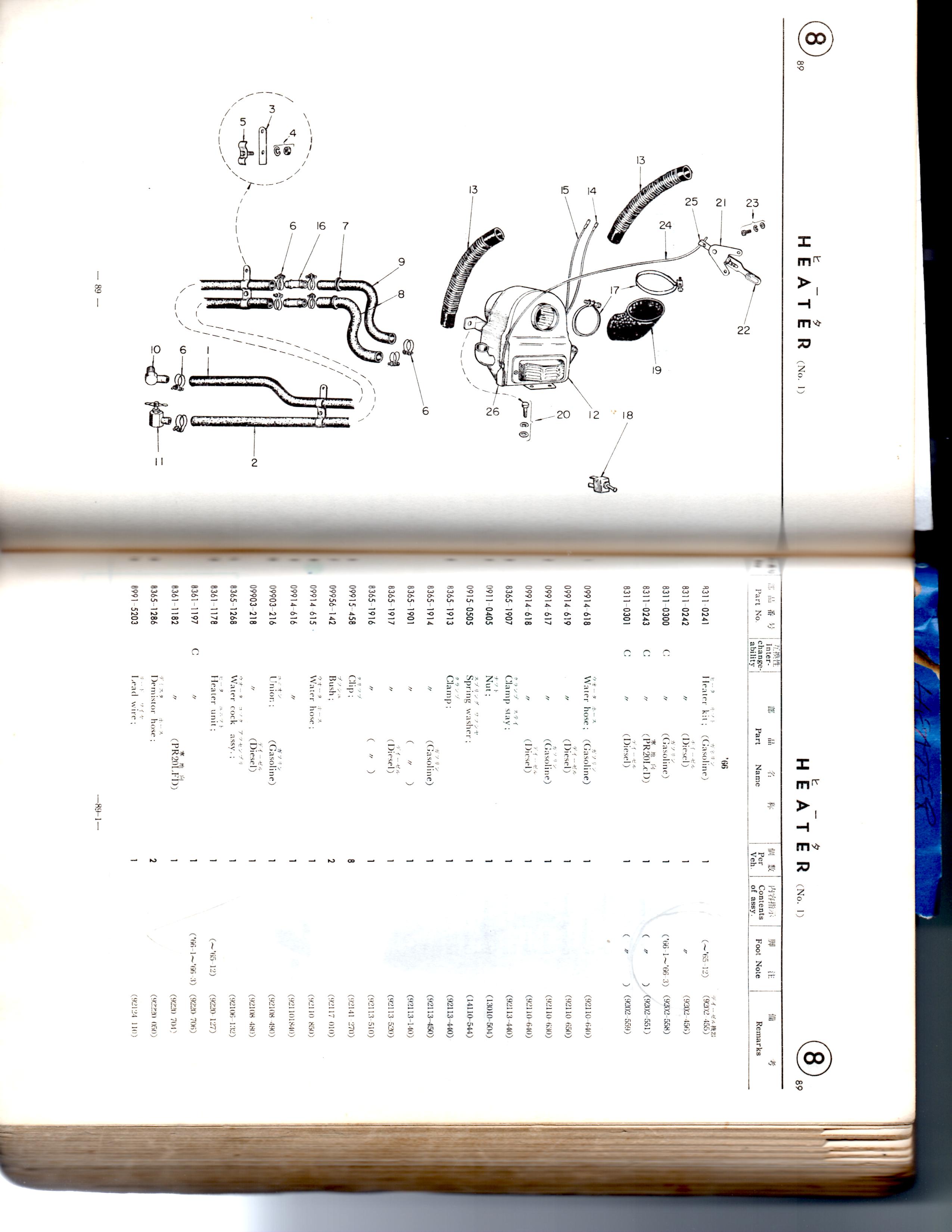

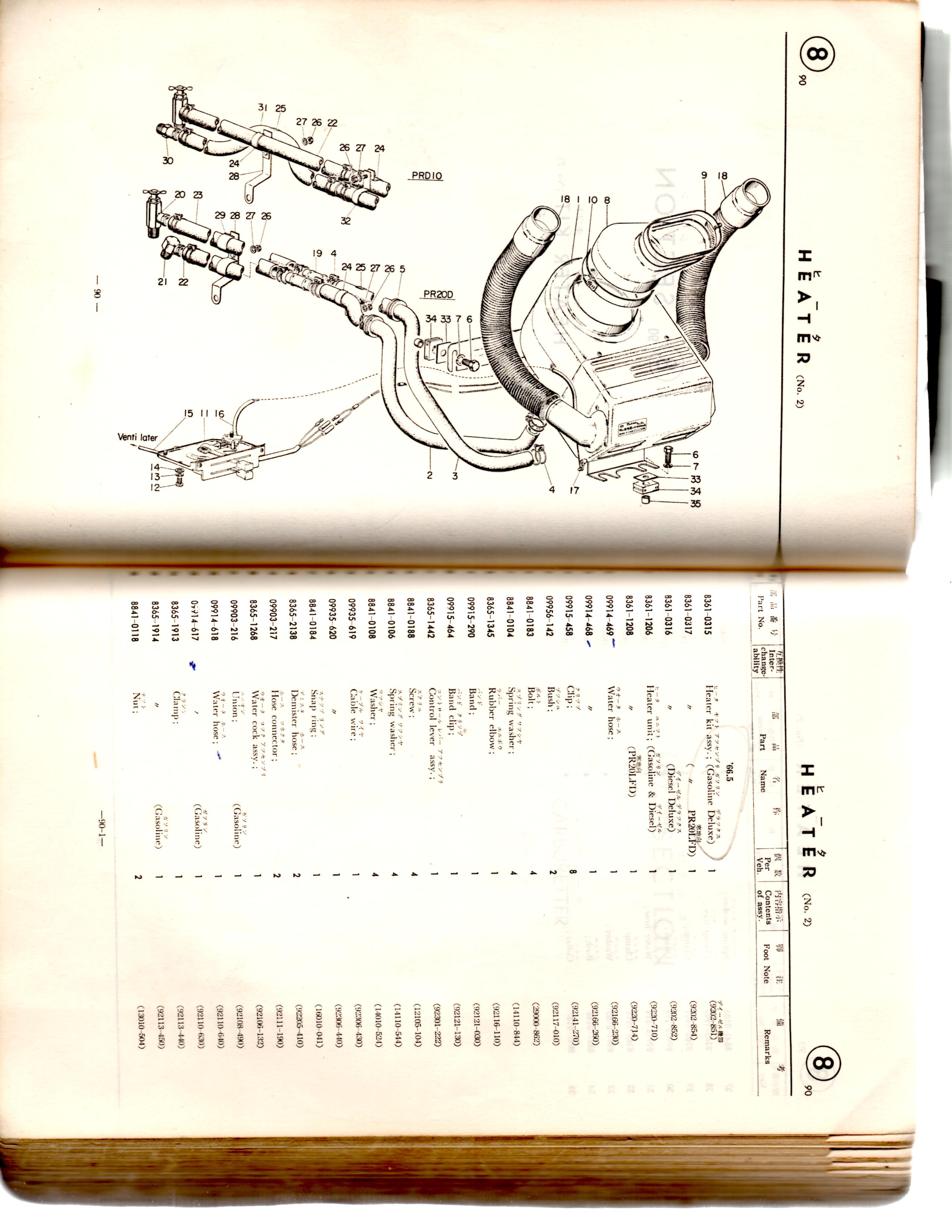

Have been going through all my catalogues and unable to see any heat cable similar to your description.
Which leads me to the following questions.
The "heat" cable. Where does it go to. Which vent.? Most genuine Bellett heater systems have two vents.
The slide lever cable. Where to.?
Have you got a separate switch (toggle type) to operate the blower motor.? Have you got a blower motor.?
This next one will be difficult to answer because your console will have to be removed to see what I'm asking for.
Have you got a large black housing encasing the heater core and blower motor attached to your plenum/air intake
housing which has a vent inside it to allow the air from your grille at the bottom of the windscreen for the air to
enter into the cabin. You probably know what I'm talking about anyway.
On the lower left hand corner of the black housing there should be a Manufacturers label (Diesel Kiki). On the right lower of the label is a eight figure part number with a prefix of 8361- and then four more numbers after. This number
will determine what heater system was installed from manufacture.
If you feel that you need to discuss this 1 on 1. Give me a call on 0488737038.

Dave.

_________________
CQGT.
I'm the Dave with the convertible.


Sun Mar 28, 2021 4:13 am
Profile
User avatar

Joined: Fri Nov 07, 2008 9:05 am
Posts: 607
Location: Western Victoria
Car(s): Bellett GT, Bellett Sedan, Prince Skyline GT, Porsche tractor, Lanz Bulldog, 996 Carrera 4,Prince Miler,
Reply with quote
Probably a local fitted heater with the cable/control operating the water tap. I installed an Australian heater (after-market but to suit a Bellett) in my new '66.5 Bellett sedan soon after I bought it. There was no fan , just a heater core and a tap. The result was beautiful , especially when travelling long country gravel roads on cold wet nights...! (not having to wear a coat to keep warm and a demisted windscreen were big plus's....)

_________________
Around here the Laws of Physics and Reality are strictly enforced !


Mon Mar 29, 2021 5:58 am
Profile

Joined: Sun Dec 12, 2010 10:04 am
Posts: 363
Location: Boyne Island.Gladstone. Queenland
Car(s): '70 PR91,'69 PR20 x 2,'66 PR20,'65? KR20's x 2,'66 ? PR90,2012 d22 STR Navarra.
Reply with quote
Hi KJB.
I too had a aftermarket heater fitted to my first '67 Bellett. Smiths brand. I've still got it. Removed it from when
I wrote the car off. Was going to fit it to my Wasp. Although different under the dash. Reckon with a bit of bush engineering I would get it to fit.
And your right about the cold. Two blankets around me and the missus wasn't enough.

Dave.

_________________
CQGT.
I'm the Dave with the convertible.


Mon Mar 29, 2021 11:19 am
Profile
User avatar

Joined: Mon Nov 15, 2010 3:11 am
Posts: 245
Location: Adelaide
Car(s): 1967 GT Bellett
Reply with quote
Hi CQGT

The cable connected to a tap at the water Pump

Never had a fan

I will have a look behind the console

The heater was disconnected in 1980 been like that ever since

Regards Flying


Tue Mar 30, 2021 6:21 am
Profile

Joined: Sun Dec 12, 2010 10:04 am
Posts: 363
Location: Boyne Island.Gladstone. Queenland
Car(s): '70 PR91,'69 PR20 x 2,'66 PR20,'65? KR20's x 2,'66 ? PR90,2012 d22 STR Navarra.
Reply with quote
Hi Flying.
Seems like at this stage you may have a non-genuine heater.
As KJB has indicated that his PR20 never had a fan. Mine didn't either.
Will be interesting to see what is behind the console. :o

Dave.

_________________
CQGT.
I'm the Dave with the convertible.


Tue Mar 30, 2021 11:52 am
Profile
User avatar

Joined: Fri Nov 07, 2008 9:05 am
Posts: 607
Location: Western Victoria
Car(s): Bellett GT, Bellett Sedan, Prince Skyline GT, Porsche tractor, Lanz Bulldog, 996 Carrera 4,Prince Miler,
Reply with quote
Maybe the later Deluxes were equipped with "factory " fan type heaters ......I had a '69 ? (strip tailight) Deluxe at one stage and I thought it had a Fan /Heater.....maybe I am wrong.....Someone here will know......
KB

_________________
Around here the Laws of Physics and Reality are strictly enforced !


Wed Mar 31, 2021 3:52 am
Profile

Joined: Tue Sep 16, 2008 11:54 am
Posts: 2531
Reply with quote
All had a heater of sorts. Standard sedans had a blow thru heat exchanger type of arrangement but no fan.
All late deluxe sedans had the same 2 speed fan attached to the exchanger as the GT's with the switch as part of the lower control.
